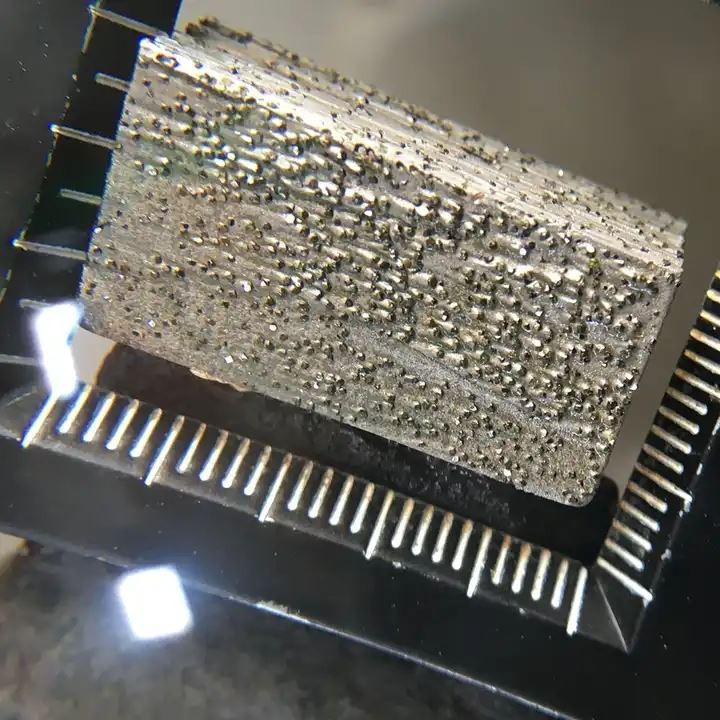

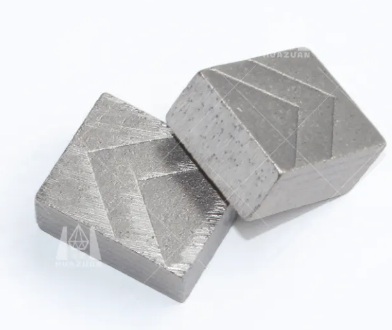

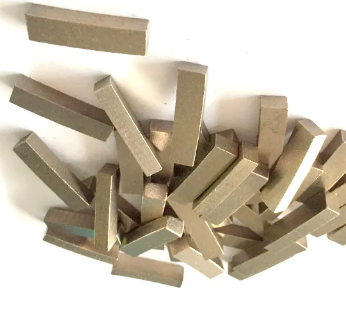

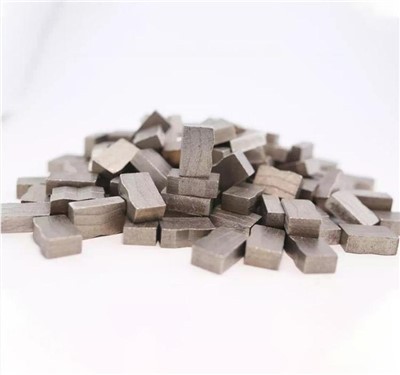

Chaw txua txiag zeb Pom Pob zeb Segment Pob zeb Cutter Cov cuab yeej
Nqe lus piav qhia:
Specification:
* Lwm cov kev qhia tshwj xeeb muaj nyob rau ntawm kev thov.
FAQ
Q: Koj puas yog chaw tsim khoom lossis tuam txhab lag luam?
A: Peb yog cov chaw tsim khoom uas muaj peb lub Hoobkas, technical Dept., marketing thiab tom qab muag pab pawg.
Q: Koj qhov zoo dua yog dab tsi?
A: Ua ntej peb yog cov chaw tsim khoom, koj tuaj yeem tau txais tus nqi zoo tshaj yam tsis tau them nyiaj ua haujlwm. Thib ob, peb muab kev qhia txog kev siv tshuab, kev debugging, txij nkawm thiab kev ua txhaum ntawm cov kev pabcuam. Thirdly, peb muab customized zuag qhia tag nrho kev daws teeb meem thiab ib tug nres kev pab cuam. Ob peb lub tshuab thiab cov cuab yeej pob zeb diamond zoo heev. Plaub, peb muab kev txhawb nqa thev naus laus zis rau koj tsis yog tshuab xwb, tab sis kuj yog cov cuab yeej pob zeb diamond. Thaum kawg, kev pabcuam zoo dua thiab qis dua tom qab muag tuaj yeem muab ua tsaug rau peb lub network thoob ntiaj teb.
Q: Thaum twg koj tuaj yeem xa kuv daim ntawv xaj?
A: Feem ntau 15-20 hnub tom qab tau txais cov nyiaj them siab tshaj. Hnub xa khoom raws sijhawm yuav raug qhia tom qab kev txiav txim paub tseeb. Peb yuav sim peb qhov zoo tshaj plaws kom xa sai tshaj plaws, yog tias koj xav tau lawv sai.
Specification:
*250-800 hli
| Txoj kab uas hla (mm) | Segment Loj (mm) | Ntu NO.(pcs/set) | Vuam txoj kev | Qauv | ||
| Ntev | Dav | Qhov siab | ||||
| 250 | 40 | 2.5 | 8/10 | 18 |
Nyiaj Vuam los yog Laser Vuam |
Ntau txheej los yog Tsis-txheej
|
| 300 | 40 | 3.2 | 8/10 | 21 | ||
| 350 | 40 | 3.2/3.4 | 8/10 | 24/25 | ||
| 400 | 40 | 3.6 | 8/10 | 28 | ||
| 450 | 40 | 4.0 | 8/10 | 32 | ||
| 500 | 40 | 4.2 | 8/10 | 36 | ||
| 550 | 40 | 4.4 | 8/10 | 38 | ||
| 600 | 40 | 4.6 | 8/10 | 42 | ||
| 700 | 40 | 5.0 | 8/10 | 50 | ||
| 725 | 40 | 5.5 | 8/10 | 50 | ||
| 800 | 40 | 5.2 | 8/10 | 46 | ||

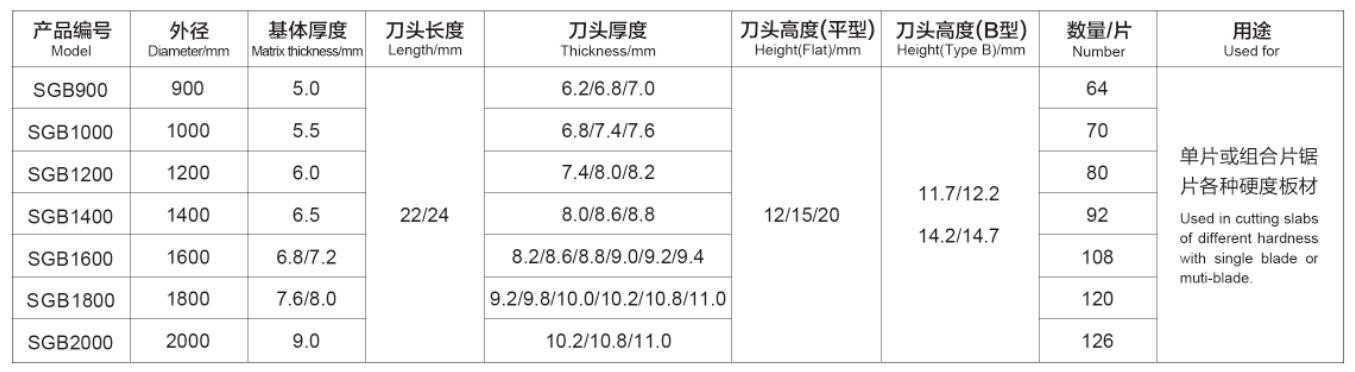

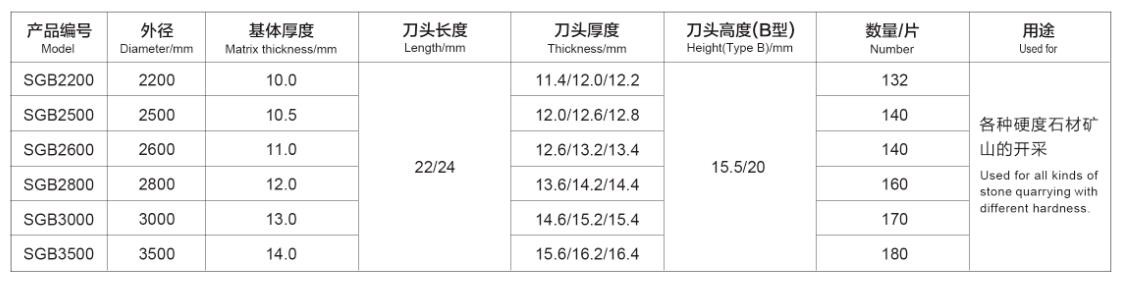

*900-3500 hli
| Txoj kab uas hla (mm) | Ntu Dimension (mm) | Ntu No. | Vuam txoj kev | Qauv | ||
| Ntev | Dav | Qhov siab | ||||
| 900 | 24 | 7.0/6.5 | 10/12/15/20 | 64 |
Nyiaj Vuam los yog Laser Vuam |
Multi-Layer los yog Tsis-txheej |
| 1000 | 24 | 7.0/6.5 | 10/12/15/20 | 70 | ||
| 1100 | 24 | 7.4/6.8 | 12/15/20 | 74 | ||
| 1200 | 24 | 7.5/7.0 | 12/15/20 | 80 | ||
| 1300 | 24 | 8.0/7.5 | 12/15/20 | 88 | ||
| 1350 | 24 | 8.4/7.7 | 12/15/20 | 88 | ||
| 1400 | 24 | 8.5/8.0 | 12/15/20 | 96 | ||
| 1600 | 24 | 9.0/8.7/8.4 | 12/15/20 | 108 | ||
| 1700 | 24 | 9.4/8.9/8.4 | 12/15/20 | 112 | ||
| 1800 | 24 | 9.5/9.0 | 12/15/20 | 120 | ||
| 2000 | 24 | 10.5/9.5 | 12/15/20 | 128 | ||
| 2200 | 24 | 11.5/10.5 | 12/15/20 | 132/136 | ||
| 2500 | 24 | 12/11.5/11 | 15/20/25/30 | 140 | ||
| 2700 | 24 | 12/11.5/11 | 15/20/25/30 | 140 | ||
| 3000 | 24 | 12.5/12/11.5 | 15/20/25/30 | 160 | ||
| 3500 | 24 | 13/12.5/12 | 15/20/25/30 | 180 | ||
