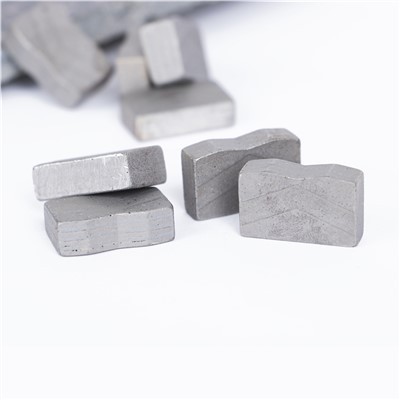

Pob zeb diamond Segment Pob zeb Cutter Cov cuab yeej
Nqe lus piav qhia:
Specification:
| Ntu rau 300-800mm pob zeb diamond saw hniav | ||||||
| Txoj kab uas hla | Core Thickness (hli) | Ntu Dimension (mm) | No. Cov hniav | |||
| mm | nti | Ntev | Thickness | Qhov siab | ||
| 300 | 12" | 2.0/2.2 | 40 | 2.8/3.0 | 8/10/12/15 | 21 |
| 350 | 14" | 2.2/2.4 | 40 | 3.0/3.2 | 8/10/12/15 | 24 |
| 400 | 16" | 2.6/2.8 | 40 | 3.4/3.6 | 8/10/12/15 | 28 |
| 450 | 18" | 2.8/3.0 | 40 | 4.0/4.2 | 8/10/12/15 | 32 |
| 500 | 20" | 2.8/3.0 | 40 | 4.0/4.2 | 8/10/12/15 | 36 |
| 600 | 24" | 3.6 | 40 | 4.6 | 8/10/12 | 42 |
| 700 | 28" | 4 | 40 | 5.2 | 8/10/12 | 42 |
| 800 | 32" | 4.5 | 40 | 6.0 | 8/10/12 | 46/57 |
| Ntu rau 900-3500mm ib leeg/ntau cov hniav | ||||||
| Txoj kab uas hla | Core Thickness (hli) | Ntu Dimension (mm) | No. Cov hniav | |||
| mm | nti | Ntev | Thickness | Qhov siab | ||
| 900 | 36" | 5 | 22/24 | 6.0/6.6 | 12/13/15 | 64 |
| 1000 | 40" | 5.5 | 22/24 | 6.4/7.0 | 12/13/15 | 70 |
| 1200 | 48" | 6 | 22/24 | 7.4/8.0 | 12/13/15 | 80 |
| 1400 | 55" | 6.5 | 22/24 | 7.8/8.4 | 12/13/15 | 92 |
| 1600 | 64" | 7.2 | 22/24 | 8.4/9.0 | 12/13/15 | 108 |
| 1800 | 72" | 8 | 22/24 | 9.2/9.8 | 12/13/15/20 | 120 |
| 2000 | 80" | 8 | 22/24 | 9.5/10.5 | 12/13/15/20 | 128 |
| 2200 | 88" | 9 | 22/24 | 10.5/11.5 | 12/13/15/20 | 132 |
| 2500 | 110" | 9 | 22/24 | 11.5/12.5 | 12/13/15/20 | 140 |
| 3000 | 120" | 10 | 22/24 | 12.5/13.5 | 12/13/15/20 | 160 |
| 3500 | 140" | 10 | 22/24 | 13.5/14.5 | 12/13/15/20 | 180 |
* Lwm cov kev qhia tshwj xeeb muaj nyob rau ntawm kev thov.
FAQ
Q1: Koj puas yog lub Hoobkas lossis tuam txhab lag luam?
A1: Peb yog Hoobkas.
Q2: Kuv tuaj yeem paub qhov zoo li cas?
A2: Sim ua qhov kev sim, tom qab koj siv peb ntu, ces koj yuav paub qhov zoo. Raws li koj cov kev xav tau, kev tsim khoom ntawm cov khoom koj xav tau. Pls tsis txhob txhawj, peb muaj 16 xyoo kev paub hauv kev lag luam pob zeb diamond.
Q3: Yuav ua li cas txog qhov tsawg kawg nkaus kom muaj nuj nqis?
A3: Txhua qhov kev txiav txim kom muaj nuj nqis yog muaj.
Q4: Kuv tuaj yeem tau txais qhov zoo tshaj plaws pob zeb diamond ntu?
A4: Muab cov lus qhia ntxiv rau peb txog koj lub pob zeb thiab koj lub pob zeb diamond saw hniav.Peb tuaj yeem muab tswv yim rau koj.
Q5: Koj cov nqe lus them nqi yog dab tsi?
A5: Kev them nyiaj yuav tsum yog 100% T / T ua ntej ua zaub mov xa tuaj.
Q6: Peb yuav ua li cas yog tias peb pom koj cov khoom ua haujlwm tsis zoo?
A6: Thov muab cov ntaub ntawv ntxaws ntxaws rau peb.Peb tuaj yeem txheeb xyuas qhov ua tau, sim nrhiav qhov teeb meem, tom qab ntawd qhia koj yuav daws lawv li cas.
Specification:
*250-800 hli
| Txoj kab uas hla (mm) | Segment Loj (mm) | Ntu NO.(pcs/set) | Vuam txoj kev | Qauv | ||
| Ntev | Dav | Qhov siab | ||||
| 250 | 40 | 2.5 | 8/10 | 18 |
Nyiaj Vuam los yog Laser Vuam |
Multi-txheej los yog Tsis-txheej
|
| 300 | 40 | 3.2 | 8/10 | 21 | ||
| 350 | 40 | 3.2/3.4 | 8/10 | 24/25 | ||
| 400 | 40 | 3.6 | 8/10 | 28 | ||
| 450 | 40 | 4.0 | 8/10 | 32 | ||
| 500 | 40 | 4.2 | 8/10 | 36 | ||
| 550 | 40 | 4.4 | 8/10 | 38 | ||
| 600 | 40 | 4.6 | 8/10 | 42 | ||
| 700 | 40 | 5.0 | 8/10 | 50 | ||
| 725 | 40 | 5.5 | 8/10 | 50 | ||
| 800 | 40 | 5.2 | 8/10 | 46 | ||
*900-3500 hli
| Txoj kab uas hla (mm) | Ntu Dimension (mm) | Ntu No. | Vuam txoj kev | Qauv | ||
| Ntev | Dav | Qhov siab | ||||
| 900 | 24 | 7.0/6.5 | 10/12/15/20 | 64 |
Nyiaj Vuam los yog Laser Vuam |
Multi-Layer los yog Tsis-txheej |
| 1000 | 24 | 7.0/6.5 | 10/12/15/20 | 70 | ||
| 1100 | 24 | 7.4/6.8 | 12/15/20 | 74 | ||
| 1200 | 24 | 7.5/7.0 | 12/15/20 | 80 | ||
| 1300 | 24 | 8.0/7.5 | 12/15/20 | 88 | ||
| 1350 | 24 | 8.4/7.7 | 12/15/20 | 88 | ||
| 1400 | 24 | 8.5/8.0 | 12/15/20 | 96 | ||
| 1600 | 24 | 9.0/8.7/8.4 | 12/15/20 | 108 | ||
| 1700 | 24 | 9.4/8.9/8.4 | 12/15/20 | 112 | ||
| 1800 | 24 | 9.5/9.0 | 12/15/20 | 120 | ||
| 2000 | 24 | 10.5/9.5 | 12/15/20 | 128 | ||
| 2200 | 24 | 11.5/10.5 | 12/15/20 | 132/136 | ||
| 2500 | 24 | 12/11.5/11 | 15/20/25/30 | 140 | ||
| 2700 | 24 | 12/11.5/11 | 15/20/25/30 | 140 | ||
| 3000 | 24 | 12.5/12/11.5 | 15/20/25/30 | 160 | ||
| 3500 | 24 | 13/12.5/12 | 15/20/25/30 | 180 | ||
Cim npe nrov: Tuam Tshoj quarry mining pob zeb diamond ntu, Tuam Tshoj chaw txua txiag zeb pob zeb diamond ntu manufacturers, lwm tus neeg, Hoobkas
