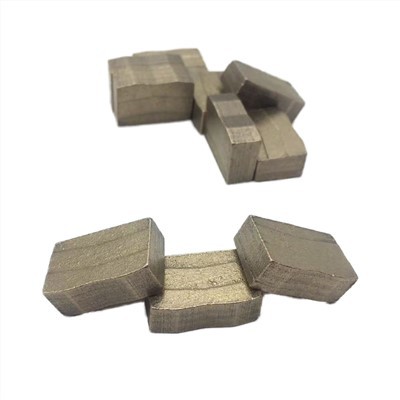

Pob Zeb Diamond Segment Pob Zeb Drilling Pom Hniav
Nqe lus piav qhia:
|
Khoom npe
|
Marble pob zeb drilling pob zeb diamond ntu siv rau ntau thiab ib leeg pom hniav
|
|
Khoom siv
|
Tooj, Zinc, Hlau, Stannum, Cobalt, Nickel, Wolframe, Titanium
|
|
Xim
|
Grey, nyiaj
|
|
Ntev
|
40mm / 38mm / 30mm / 24mm
|
|
Qhov siab
|
8 hli / 10mm / 12mm / 13.5mm / 15mm / 20mm
|
|
Txiav Hom
|
ntub / qhuav txiav
|
|
Hom qauv
|
sandwich / grooved hom
|
|
Segment Shape
|
Rectangle Shape / M Shape / K Shape
|
|
Siv
|
tsim kev lag luam machinery / rau pob zeb txiav / rau pobzeb thiab iav txiav / rau kev tsim kho engineering
|
FAQ
Q1. Koj lub Hoobkas nyob qhov twg?Kuv tuaj yeem tuaj xyuas koj li cas?
A1: Peb lub Hoobkas nyob hauv Shuito Quanzhou City, lub pob zeb loj tshaj plaws thiab chaw lag luam thoob ntiaj teb hauv Suav teb. Zoo siab txais tos tuaj xyuas peb.
Q2. Koj Qhov Zoo Li Cas?
A2. Peb muaj kev tswj xyuas zoo heev (PDCA txoj cai thiab 7S) thiab peb lav qhov kev ua tau zoo ntawm peb cov khoom.
Q3. Peb yuav ua li cas yog tias koj cov khoom tsis tuaj yeem ua haujlwm zoo?
A3: Thov muab cov ntaub ntawv ntxaws ntxaws rau peb. peb yuav txheeb xyuas qhov laj thawj.
Sim nrhiav txoj hauv kev los daws qhov teeb meem.Yog tias nws yog peb qhov teeb meem thiab daws tsis tau ces yuav muab hloov.
Q4. Koj puas muab cov qauv dawb?
A4. Peb tsis muab cov qauv pub dawb, raws li peb cov kev paub dhau los thaum tib neeg tau txais cov qauv los ntawm kev them nyiaj lawv yuav nyiam qhov lawv tau txais thiab yuav them nyiaj ntau dua rau kev kuaj zoo.
Q5. Koj Lub Sijhawm Lead yog dab tsi?
A: Peb khaws cov ntaub ntawv raw rau feem ntau ntawm peb cov khoom, yog li ntawd, lub sijhawm ua haujlwm yuav yog 2-4 lub lis piam nyob ntawm cov lus txiav txim. Peb qhov kev muag khoom yuav lees paub lub sijhawm ua haujlwm nrog koj thaum kev txiav txim tab tom ua.
Specification:
*250-800 hli
| Txoj kab uas hla (mm) | Segment Loj (mm) | Ntu NO.(pcs/set) | Vuam txoj kev | Qauv | ||
| Ntev | Dav | Qhov siab | ||||
| 250 | 40 | 2.5 | 8/10 | 18 |
Nyiaj Vuam los yog Laser Vuam |
Ntau txheej los yog Tsis-txheej
|
| 300 | 40 | 3.2 | 8/10 | 21 | ||
| 350 | 40 | 3.2/3.4 | 8/10 | 24/25 | ||
| 400 | 40 | 3.6 | 8/10 | 28 | ||
| 450 | 40 | 4.0 | 8/10 | 32 | ||
| 500 | 40 | 4.2 | 8/10 | 36 | ||
| 550 | 40 | 4.4 | 8/10 | 38 | ||
| 600 | 40 | 4.6 | 8/10 | 42 | ||
| 700 | 40 | 5.0 | 8/10 | 50 | ||
| 725 | 40 | 5.5 | 8/10 | 50 | ||
| 800 | 40 | 5.2 | 8/10 | 46 | ||
*900-3500 hli
| Txoj kab uas hla (mm) | Ntu Dimension (mm) | Ntu No. | Vuam txoj kev | Qauv | ||
| Ntev | Dav | Qhov siab | ||||
| 900 | 24 | 7.0/6.5 | 10/12/15/20 | 64 |
Nyiaj Vuam los yog Laser Vuam |
Multi-Layer los yog Tsis-txheej |
| 1000 | 24 | 7.0/6.5 | 10/12/15/20 | 70 | ||
| 1100 | 24 | 7.4/6.8 | 12/15/20 | 74 | ||
| 1200 | 24 | 7.5/7.0 | 12/15/20 | 80 | ||
| 1300 | 24 | 8.0/7.5 | 12/15/20 | 88 | ||
| 1350 | 24 | 8.4/7.7 | 12/15/20 | 88 | ||
| 1400 | 24 | 8.5/8.0 | 12/15/20 | 96 | ||
| 1600 | 24 | 9.0/8.7/8.4 | 12/15/20 | 108 | ||
| 1700 | 24 | 9.4/8.9/8.4 | 12/15/20 | 112 | ||
| 1800 | 24 | 9.5/9.0 | 12/15/20 | 120 | ||
| 2000 | 24 | 10.5/9.5 | 12/15/20 | 128 | ||
| 2200 | 24 | 11.5/10.5 | 12/15/20 | 132/136 | ||
| 2500 | 24 | 12/11.5/11 | 15/20/25/30 | 140 | ||
| 2700 | 24 | 12/11.5/11 | 15/20/25/30 | 140 | ||
| 3000 | 24 | 12.5/12/11.5 | 15/20/25/30 | 160 | ||
| 3500 | 24 | 13/12.5/12 | 15/20/25/30 | 180 | ||
