Khoom Description:

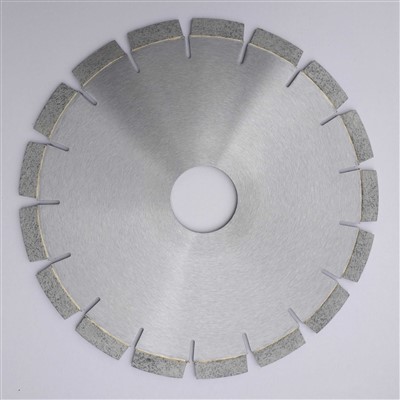

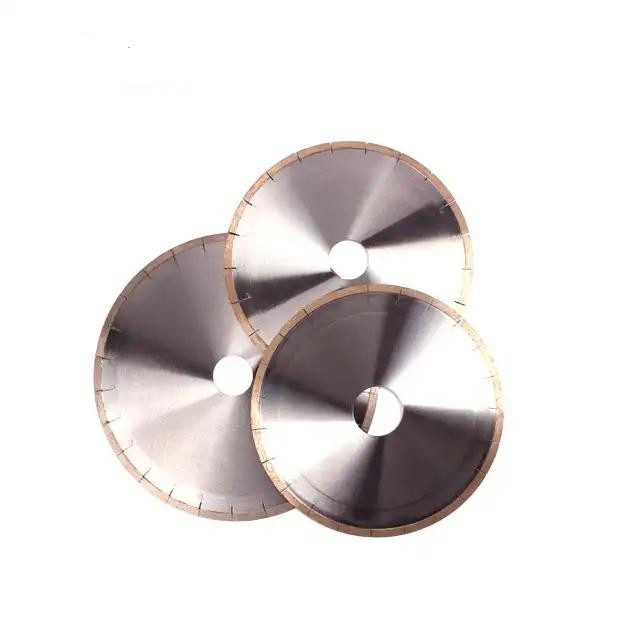

Lub pob zeb diamond ncig saw hniav yog cov cuab yeej siv ntau tshaj plaws siv hauv kev lag luam pob zeb tam sim no. Nws yog nyob rau hauv cov duab ntawm ib tug disc tag nrho. Nws siv txoj kev xws li hmoov metallurgy los yog electroplating rau inlay pob zeb diamond hais nyob ib ncig ntawm lub matrix. Lub hom phiaj ntawm kev txiav yog ua tiav los ntawm kev siv lub zog siab thiab hardness ntawm pob zeb diamond hais rau shear thiab rhuav lwm cov ntaub ntawv.
Muaj ntau ntau hom pob zeb diamond ncig pom hniav, thiab kev faib tawm kuj nyuaj heev. Feem ntau muaj cov kev faib tawm hauv qab no:
1. Muab faib los ntawm kev tsim khoom:
(1) Sintered pob zeb diamond pom hniav: Muaj ob hom: txias xovxwm sintering thiab kub xovxwm sintering.
(2) Vuam pob zeb diamond pom hniav: muaj ob hom: brazing thiab laser vuam. Brazing yog vuam lub taub hau cutter thiab substrate ua ke los ntawm qhov kub-kub melting nruab nrab, xws li high-frequency induction brazing saw hniav, nqus brazing saw hniav, thiab lwm yam.; Vuam siv lub teeb laser kub kub los yaj qhov kev sib cuag ntawm cov cuab yeej thiab cov substrate los tsim ib daim ntawv cog lus metallurgical.
(3) Electroplated pob zeb diamond saw hniav: cov hniav hmoov yog txuas rau substrate los ntawm electroplating. Txawm li cas los xij, vim muaj kuab paug hnyav, lub teb chaws maj mam tshem tawm txoj kev electroplating no.
|
Txoj kab uas hla |
Ntu dav |
Arbor Loj |
Ntu Qhov siab |
|
105 hli |
2. 0mm |
22.23/20/16 |
7/10 |
|
110 hli |
2. 0mm |
22.23/20/16 |
7/10 |
|
115 hli |
2. 0mm |
22.23 |
7/10 |
|
125 hli |
2.2 hli |
22.23 |
7/10 |
|
150 hli |
2.2 hli |
22.23 |
7/10 |
|
180 hli |
2.4mm ib |
25.4/22.23 |
7/10 |
|
200 hli |
2.4mm ib |
22.23 |
7/10 |
|
230 hli |
2.6mm ib |
22.23 |
7/10 |
|
250 hli |
2.6mm ib |
25.4/22.23/20 |
7/10 |
|
300 hli |
3. 0 hli |
27/25.4/22.23/20 |
7/10 |
|
350 hli |
3. 0 hli |
27/25.4/22.23/20 |
7/10 |
Lub ntsiab nta
Pob zeb diamond ncig saw hniav yog cov cuab yeej tseem ceeb hauv kev lag luam pob zeb. Nyob rau hauv xyoo tas los no, tus nqi ntawm cov pob zeb diamond dag siv hauv kev lag luam pob zeb tau nce siab, thiab daim ntawv thov ntawm pob zeb diamond ncig pom hniav tau nce ntxiv.
Feem ntau, txoj kev loj hlob ntawm pob zeb diamond ncig saw hniav nyob hauv tsev thiab txawv teb chaws muaj cov yam ntxwv hauv qab no: kev tsim cov khoom zoo thiab kev ua haujlwm zoo, thiab kev tsim cov pob zeb diamond tshwj xeeb rau cov hniav; ntau ntxiv rau kev tshawb fawb ntawm hmoov, matrix thiab sintering txheej txheem; tseem ceeb dua ntawm pob zeb sawing thiab Kev tshawb fawb ntawm sawing mechanism; txoj kev loj hlob ntawm laser vuam saw hniav; txoj kev loj hlob ntawm oversized pob zeb diamond ncig saw hniav.
Tam sim no, daim ntawv thov ntawm pob zeb diamond ncig saw hniav yog ntau thiab ntau dua. Nyob rau hauv lub neej yav tom ntej, txoj kev loj hlob kev taw qhia ntawm pob zeb diamond ncig saw hniav yog los txhim kho tej efficiency, saw hniav lub neej, txo nqi ntau lawm, thiab mus cuag ib puag ncig tiv thaiv.
Yam khoom nthuav dav:
FAQ
Q: Koj puas yog tuam txhab lag luam lossis chaw tsim khoom?
A: Peb yog Hoobkas.
Q: Koj lub sijhawm xa khoom ntev npaum li cas?
A: Txog 30 hnub, raws li qhov ntau.
Q: Koj puas muab cov qauv? Puas yog dawb lossis ntxiv?
A: Yog, peb tuaj yeem muab cov qauv dawb, tab sis tsis them tus nqi thauj khoom.
Q: Koj cov nqe lus them nqi yog dab tsi?
A: Them nyiaj<=1000USD, 100% in advance payment>=1000USD, 30% ua ntej T / T tshuav nyiaj li cas ua ntej xa khoom.
|
Hom
|
Sab nraud txoj kab uas hla |
Sab hauv txoj kab uas hla |
Specification T×W |
||
|
Ntiv |
Metric (mm) |
Ntiv |
Metric (mm) |
||
|
DF -115 |
4.5'' |
115 |
4/5'' 7/8'' |
20 22.23 |
2.2×3 |
|
DF -180 |
7'' |
180 |
4/5'' 7/8'' |
20 22.23 |
2.3×3 |
|
DF -230 |
9'' |
230 |
4/5'' 7/8'' |
20 22.23 |
2.4×3 |
|
DF -300 |
12'' |
300 |
2'' |
50 |
2.4/3.4×8 |
|
DF -350 |
14'' |
350 |
2'' |
50 |
2.4/3.4×8 |
|
DF -400 |
16'' |
400 |
2'' |
50 |
3.4/4.2×8 |
|
DF -450 |
18'' |
450 |
2'' |
50 |
3.8/4.2×8 |
|
DF -500 |
20'' |
500 |
2'' |
50 |
4.2/5.2×8 |
